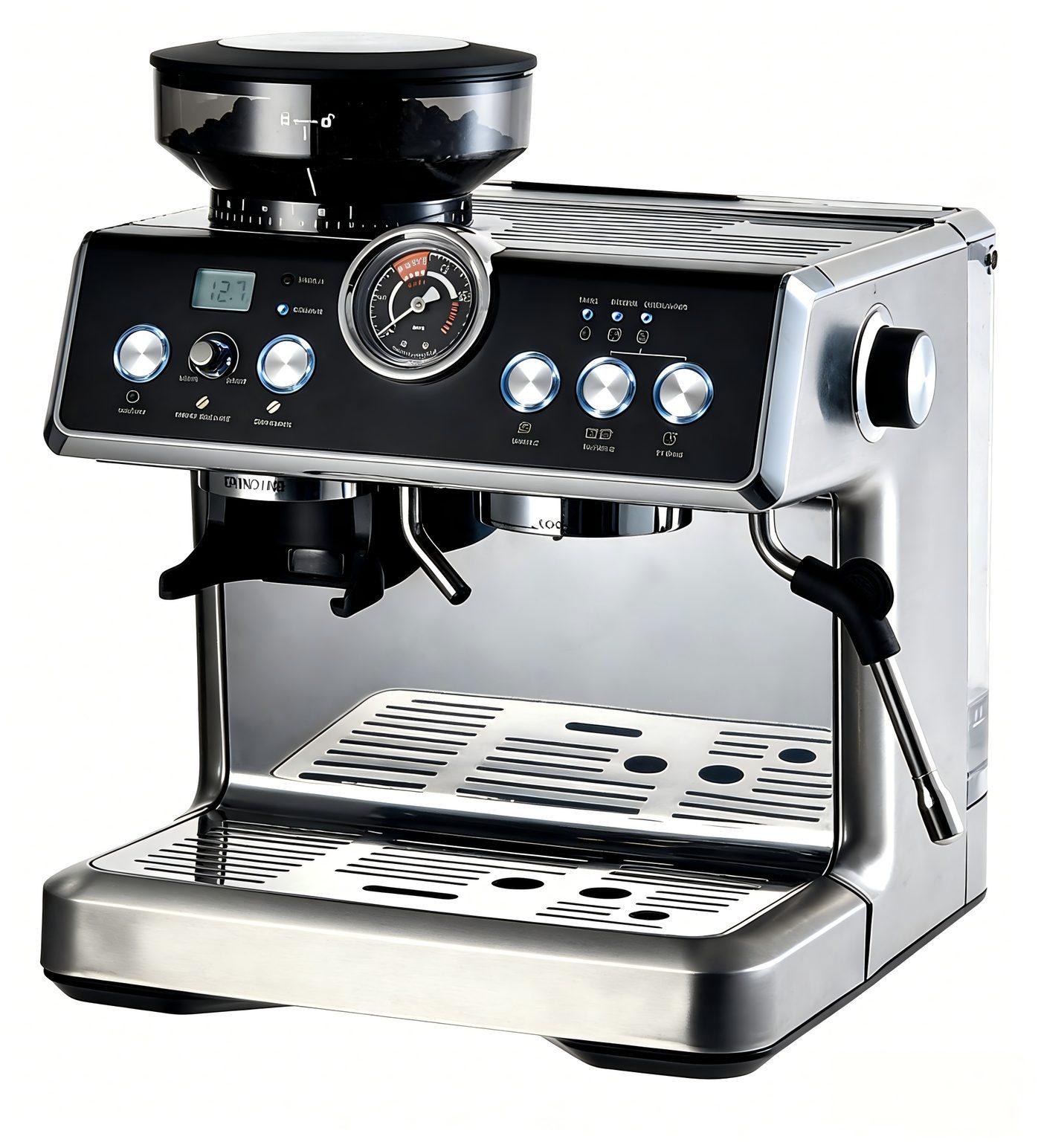

PA-601 — Semi-automatic espresso machine with integrated grinder

Mechanical buttons, a visible pressure gauge and a 20-bar Italian pump. This is the machine we ship most of, because there is nothing on it to misunderstand.

Model: PA-601
MOQ: 330 pcs
Price terms: FOB price on request

AT A GLANCE

Key specifications

Pump Pressure: 20 bar
Pump Brand: Italian ULKA
Grinder Type: conical burr
Grinder Settings: 15 + 4
Portafilter Diameter: 58 mm
Bean Hopper Capacity: 250 g
Water Tank Capacity: 2.8 L
Heating System: dual instant thermoblock
Voltage Options: 220–240 V × 120 V
Power By Market: 2450 × 1500 W
Product Dimensions: 315 × 325 × 380 mm (W×D×H as recorded)
Hs Code: 85167130

PRODUCT OVERVIEW

PA-601, built to sell.

The 601 is a full stainless steel body with a conical burr grinder built into the top and a 58 mm commercial portafilter underneath. It is the configuration most of our distributors settle on after they have tried a touch panel and decided they would rather turn a knob.

Italian ULKA pumpA full 20-bar pump with an over-pressure valve set at 9 bar, so the pressure at the puck is the pressure the roaster intended — not the number on the box.
Grinding settingsFour extra micro-steps beyond the usual fifteen. Enough range to move from a dark Italian roast to a light Scandinavian filter roast without changing the burrs.
Commercial portafilterThe standard size. Your existing baskets, tampers, distribution tools and scales already fit, and so does your service engineer.
Front-loading water tankRemovable, transparent and big enough that a two-cup-a-day household refills it about once a week.
